Service Rig Catwalks

C3

C3 Service Rig Catwalk also available in trailer form

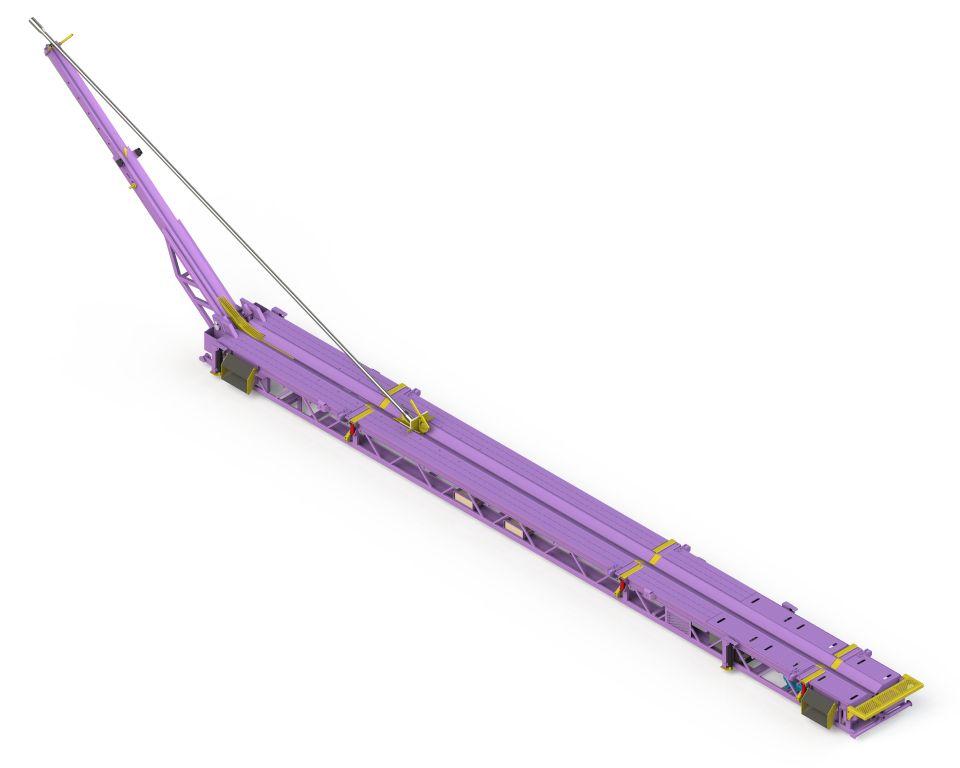

 The C3 hydraulic catwalk is designed to be a mobile unit, ideally suited for service with workover rigs. The C3 offers wireless or tethered remote controls and either an electric or diesel driven hydraulic power unit. The C3 has a hydraulically extendable ramp for presentation heights from 8' 6" to 21'.

Feature Specification
Presentation Height Range (for the end of the tubular) 8' 6" to 21'
Maximum Tubular Length Range III
Maximum Tubular OD 10-3/4"
Maximum Tubular Weight 2,000 lbs
Weight without options 11,000 lbs (Range II version)
Length 43' (Range II version)
Hydraulic Power Unit Electric or diesel
Power Requirement 15 / 25 HP
Cycle Time 25 seconds

  • Standalone self contained operation
  • Rapid set-up and tear-down
  • Hydraulic leveling of the catwalk
  • Hydraulically extendable ramp
  • Electric (or standalone diesel) hydraulic power unit
  • Wireless remote control

  • Fully mechanized process eliminates manual handling of tubular
  • Safety shutdowns
  • Well labelled with standard safety decals
  • Master control at end of catwalk, away from tubular area
  • Hydraulic failsafe regulators

C3T

C3T Service Rig Catwalk

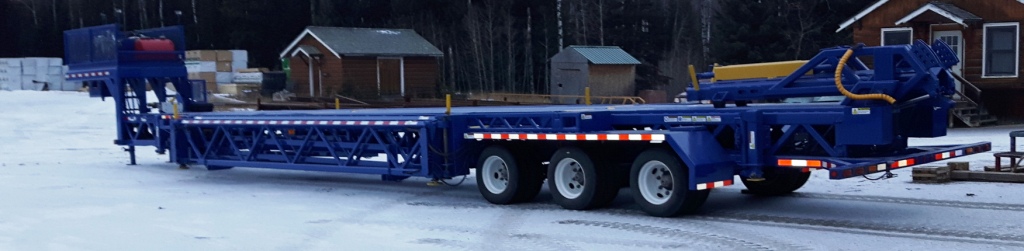

 The C3T hydraulic catwalk is designed as a trailerised version of the C3 catwalk. The C3T offers a standalone self contained operation based on a triple axle kingpin trailer, with a self contained diesel hydraulic power unit. The C3T has a hydraulically raisable v-door for presentation heights from 8' 6" to 23'.

Feature Specification
Presentation Height Range (for the end of the tubular) 8' 6" to 23'
Maximum Tubular Length Range III
Maximum Tubular OD 10-3/4"
Maximum Tubular Weight 2,000 lbs
Maximum Pipe Rack Load 30,000 lbs
Weight without options 30,600 lbs
Length 60' 6"
Hydraulic Power Unit Electric or diesel
Power Requirement 15 / 35 HP
Cycle Time 25 seconds

  • Trailer mounted
  • Standalone self contained operation
  • Rapid set-up and tear-down
  • 20' long Pipe Racks
  • Wireless remote control
  • Optional hydraulic leveling jacks
  • Self contained diesel driven hydraulic power unit

  • Fully mechanized process eliminates manual handling of tubular
  • Safety shutdowns
  • Well labelled with standard safety decals
  • Master control at end of catwalk, away from tubular area
  • Hydraulic failsafe regulators

C4

C4 Service Rig Catwalk also available in trailer form

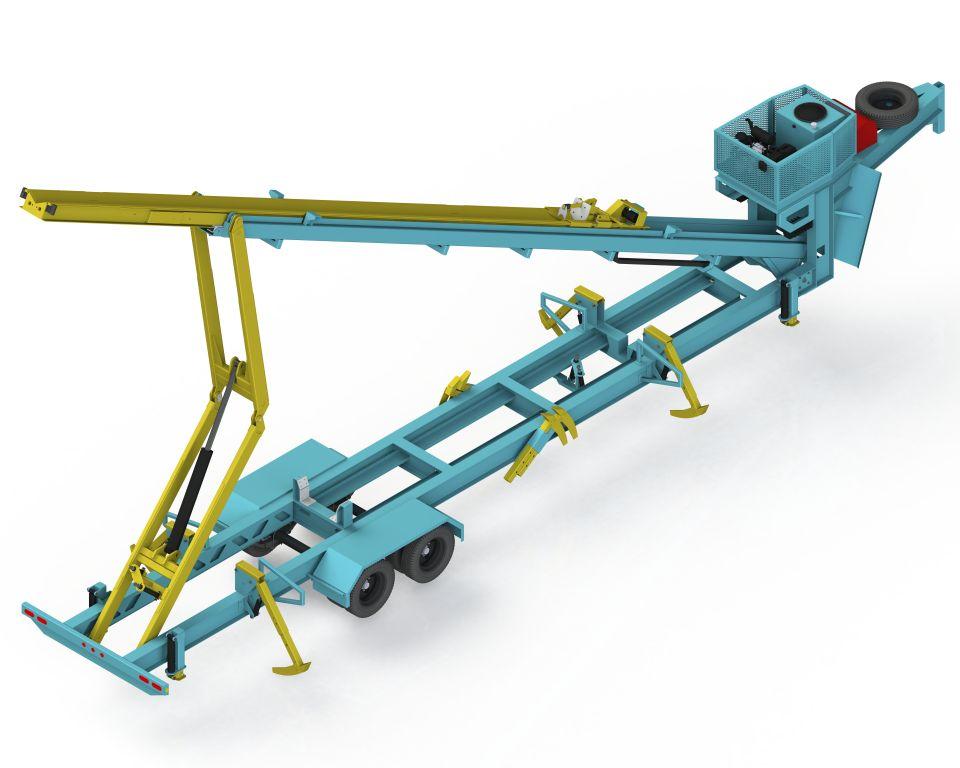

 The C4 hydraulic catwalk is designed as a mobile unit for service with workover rigs. The C4 offers a standalone self contained operation based on a dual axle gooseneck trailer, with a self contained diesel hydraulic power unit. The C4 has a hydraulically raisable and scopable carrier for presentation heights from 6' to 30'.

Feature Specification
Presentation Height Range (for the end of the tubular) 6' to 30'
Maximum Tubular Length Range III
Maximum Tubular OD 9-5/8"
Maximum Tubular Weight 2,000 lbs
Weight without options 16,000 lbs
Length 49' 2-1/2"
Hydraulic Power Unit Diesel
Power Requirement 48 HP
Cycle Time 30 seconds

  • Trailer mounted
  • Standalone self contained operation
  • Rapid set-up and tear-down
  • Wireless remote control
  • Optional manual 12' Pipe Racks with hydraulic Loader Arm
  • Self contained diesel driven hydraulic power unit

  • Fully mechanized process eliminates manual handling of tubular
  • Safety shutdowns
  • Well labelled with standard safety decals
  • Master control at end of catwalk, away from tubular area
  • Hydraulic failsafe regulators
  • Dual sensors

C4S

Hydraulic Catwalk

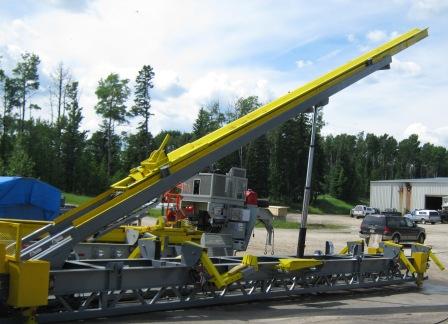

 The C4S hydraulic catwalk is a skid based version of the C4 The C4S offers either an electric or diesel driven hydraulic power unit. The C4S has a hydraulically raisable and scopable carrier for presentation heights from 6' to 30'.

Feature Specification
Presentation Height Range (for the end of the tubular) 6' to 30'
Maximum Tubular Length Range III
Maximum Tubular OD 9-5/8"
Maximum Tubular Weight 2,000 lbs
Weight 15,000 lbs
Length 49' 10-1/4"
Hydraulic Power Unit Diesel
Power Requirement 50 HP
Cycle Time 30 seconds

  • Skid mounted with roll end and lift points
  • Standalone self contained operation
  • Rapid set-up and tear-down
  • Wireless remote control
  • Optional manual 12' Pipe Racks with hydraulic Loader Arm
  • Self contained diesel driven hydraulic power unit

  • Fully mechanized process eliminates manual handling of tubular
  • Safety shutdowns
  • Well labelled with standard safety decals
  • Master control at end of catwalk, away from tubular area
  • Hydraulic failsafe regulators
  • Dual sensors

C10

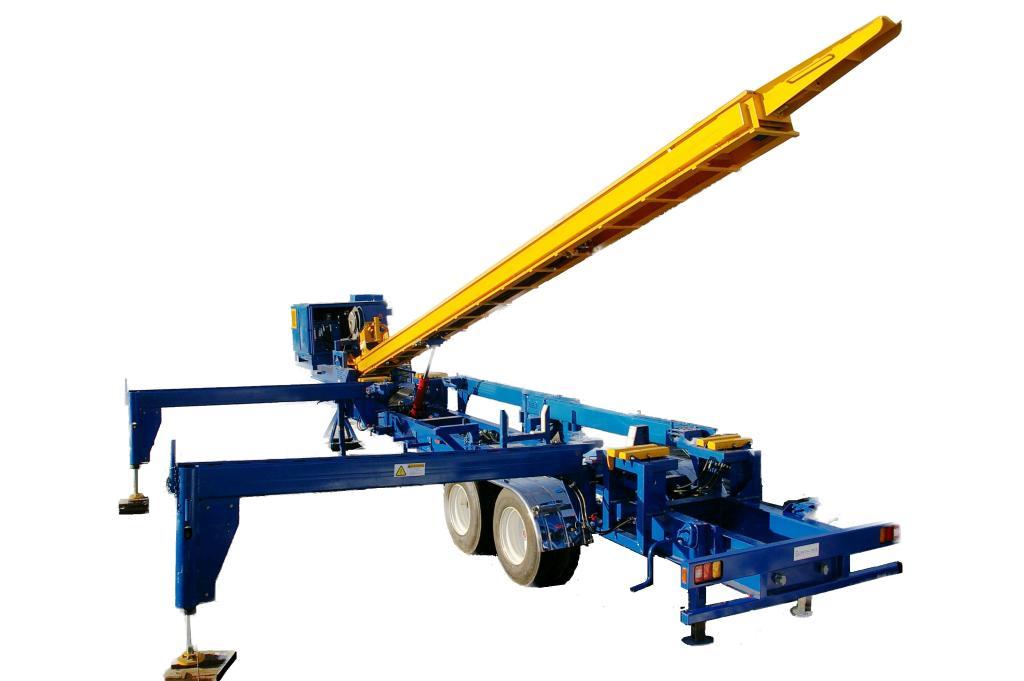

C10 Service Rig Catwalk
 The C10 hydraulic catwalk is designed as a mobile unit for service rigs in Australia (Australian trailer specification). The C10 offers a standalone self contained operation based on a tandem axle gooseneck trailer, with a self contained hydraulic power unit. The C10 has a hydraulically raisable carrier for presentation heights from 8' to 21'.

Feature Specification
Presentation Height Range (for the end of the tubular) 8' to 21'
Maximum Tubular Length Range III
Maximum Tubular OD 13 3/8"
Maximum Tubular Weight 3,500 lbs
Maximum Pipe Rack Load 20,000 lbs
Weight without options 30,000 lbs
Length 45'
Hydraulic Power Unit Diesel or Electric
Power Requirement 50 HP
Cycle Time 30 seconds

  • Trailer mounted
  • Standalone self contained operation
  • Rapid set-up and tear-down
  • 12' long Pipe Racks
  • Hydraulic pipe racks either side of catwalk
  • Optional hydraulically extendable carrier
  • Self contained electric or diesel driven hydraulic power unit
  • Wireless Remote Control

  • Fully mechanized process eliminates manual handling of tubular
  • Safety shutdowns
  • Well labelled with standard safety decals
  • Master control at end of catwalk, away from tubular area
  • Hydraulic failsafe regulators
  • Dual sensors

C14

C14 Drilling Rig Catwalk
 The C14 hydraulic catwalk is designed to be versatile height catwalk. It offers wireless remote controls and electric driven hydraulic power unit. The C14 has a hydraulically extendable carrier for presentation heights from 6' to 36'

Feature Specification
Working Floor Height Range 6' to 34'
Maximum Tubular Length Range III
Maximum Tubular OD 20"
Maximum Tubular Weight 6,000 lbs
Maximum Pipe Rack Load 30,000 lbs
Weight without options 40,000 lbs
Length 54'
Hydraulic Power Unit Electric
Power Requirement 75 HP
Cycle Time 30 seconds

  • Standalone self contained operation
  • Rapid set-up and tear-down
  • Hydraulic leveling of the catwalk
  • Hydraulic pipe racks either side of catwalk
  • Hydraulically extendable carrier
  • Electric driven hydraulic power unit
  • Wireless remote control
  • Automatic presentation mode

  • Fully mechanized process eliminates manual handling of tubular
  • Safety shutdowns
  • Well labelled with standard safety decals
  • Master control at end of catwalk, away from tubular area
  • Hydraulic failsafe regulators
  • Dual sensors

  • Cold climate upgrade, rated for -40°C
