66-150 Model A
|
A Carrier rig
- Mobile Pipe Arm Drilling Unit
- Subscructure Class: Carrier
- Clearence to crown: 66'
- Maximum Static Hook Load: 150,000 lbs
- Design Code: API 4F 3rd
|

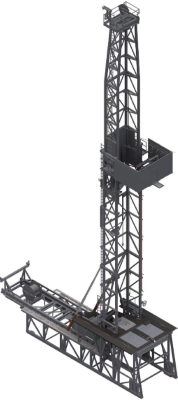

105-400 Model A
|
A one-piece step down rig.
- Mast Class: Telescopic Double
- Subscructure Class: One-Piece Step Down
- Clearence to crown: 105'
- Maximum Static Hook Load: 400,000 lbs
- Design Code: API 4F 3rd
|
105-440 Model A
|
A one-piece step down rig.
- Mast Class: Telescopic Double
- Subscructure Class: One-Piece Step Down
- Clearence to crown: 105'
- Maximum Static Hook Load: 440,000 lbs
- Design Code: API 4F 3rd
|

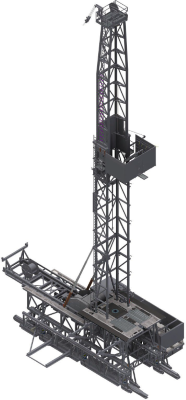

108-440 Model A
|
A one-piece step down rig.
- Mast Class: Telescopic Double
- Subscructure Class: One-Piece Step Down
- Clearence to crown: 108'
- Maximum Static Hook Load: 440,000 lbs
- Design Code: API 4F 3rd
|

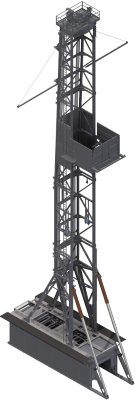

136-500 Model A
|
A one-piece box down rig.
- Mast Class: Four Piece Cantilever
- Subscructure Class: One-Piece Box Down
- Clearence to crown: 136'
- Maximum Static Hook Load: 500,000 lbs
- Design Code: API 4F 3rd
|

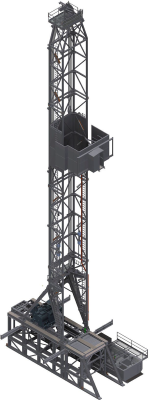

142-550 Model A
|
A one-piece box down rig.
- Mast Class: Telescopic Double
- Subscructure Class: One-Piece Box Down
- Clearence to crown: 142'
- Maximum Static Hook Load: 550,000 lbs
- Design Code: API 4F 3rd
|
142-750 Model A
|
A swing up substructure rig.
- Mast Class: Cantilever
- Subscructure Class: Swing Up Substructure
- Clearence to crown: 142'
- Maximum Static Hook Load: 750,000 lbs
- Design Code: API 4F 3rd
|
142-750 Model B
|
A swing up substructure rig.
- Mast Class: Cantilever
- Subscructure Class: Swing Up Substructure
- Clearence to crown: 142'
- Maximum Static Hook Load: 750,000 lbs
- Design Code: API 4F 3rd
|

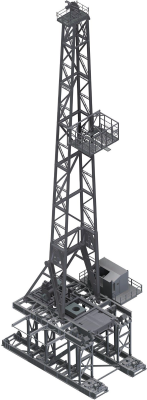

142-750 Model C
|
A swing up substructure rig.
- Mast Class: Cantilever
- Subscructure Class: Swing Up Substructure
- Clearence to crown: 142'
- Maximum Static Hook Load: 750,000 lbs
- Design Code: API 4F 3rd
|

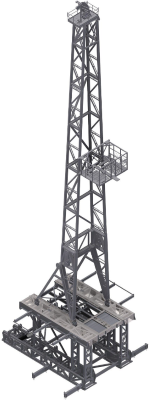

142-750 Model D
|
A swing up substructure rig.
- Mast Class: Cantilever
- Subscructure Class: Swing Up Substructure
- Clearence to crown: 142'
- Maximum Static Hook Load: 750,000 lbs
- Design Code: API 4F 3rd
|

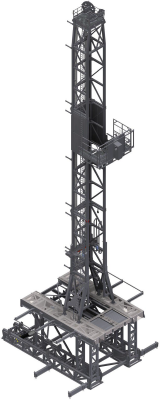

142-750 Model E
|
A swing up substructure.
- Mast Class: Cantilever
- Subscructure Class: Swing Up Substructure
- Clearence to crown: 142'
- Maximum Static Hook Load: 750,000 lbs
- Design Code: API 4F 3rd
|

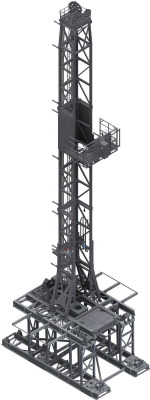

142-750 Model F
|
A swing up substructure rig.
- Mast Class: Cantilever
- Subscructure Class: Swing Up Substructure
- Clearence to crown: 142'
- Maximum Static Hook Load: 750,000 lbs
- Design Code: API 4F 3rd
|

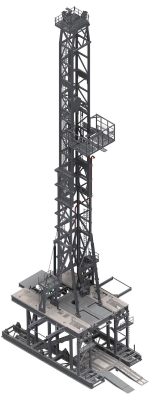

142-1000 Model A
|
A swing up substructure rig.
- Mast Class: Bootscopic Triple
- Subscructure Class: Swing Up Substructure
- Clearence to crown: 142'
- Maximum Static Hook Load: 1,000,000 lbs
- Design Code: API 4F 3rd
|
