Deadline Anchors

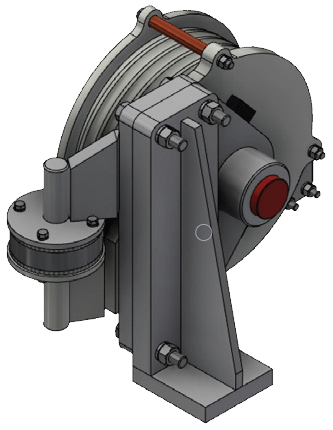

FM100 Floor Mount Deadline Anchor

Floor Mount Deadline Anchors
 The floor mount deadline anchors have unique features such as safety release pigtail brass keepers and wireline keepers that allow for simple wireline removal. Our floor mount anchors come in a variety of capacities and mounting arrangements. Our floor mount deadline anchors are designed for simple operation and maintenance while ensuring the safety of your rig and personnel. All of our deadline anchors meet or exceed the API 8C standard and are fabricated to product specification level 1 or 2 at a licensed American Petroleum Institute fabrication facility. Drum and plate materials are all high-grade alloys. Shaft materials are precision machined, heat-treated and pivot on the highest quality antifriction tapered roller bearings. There are 4 capactities available, shown in the following table.:

Cap.Wire line SizeNominal drum dia.Weight (approx)
50K lbs (222 kN)1" (25.4 mm)
1-1/8" (28.6 mm)		18" (470 mm)
18" (470 mm)		510 lbs (231 kg)
815 lbs (370 kg)
65K lbs (289 kN)1-1/4" (31.8 mm)25" (645 mm)950 lbs (431 kg)
75K lbs (334 kN)1-1/4" (31.8 mm)
1-3/8" (34.9 mm)		25" (654 mm)
25" (654 mm)		1,250 lbs (567 kg)
1,380 lbs (626 kg)
100K lbs (445 kN)1-1/4" (31.8 mm)
1-3/8" (34.9 mm)
1-1/2" (38.1 mm)		29" (749 mm)
29" (749 mm)
29" (749 mm)		1700 lbs (771 kg)
1800 lbs (816 kg)
1875 lbs (850 kg)

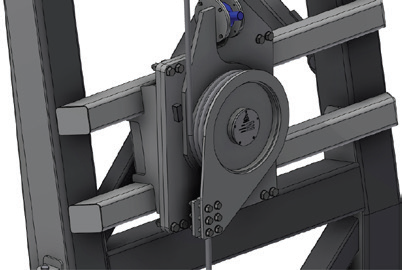

MM100 Mast Mount Deadline Anchor

Mast Mount Deadline Anchors
 Our compact design offers the maximum floor space. With multiple pigtail and bolt center options, there is a mast mount design that will suit your needs. Our mast mount deadline anchors are designed for simple operation and maintenance while ensuring the safety of your rig and personnel. All of our deadline anchors meet or exceed the API 8C standard and are fabricated to product specification level 1 or 2 at a licensed American Petroleum Institute fabrication facility. Drum and plate materials are all high-grade alloys. Shaft materials are precision machined, heat-treated and pivot on the highest quality antifriction tapered roller bearings. There are 4 capactities available, shown in the following table.:

Cap.Wire line SizeNominal drum dia.Weight (approx)
50K lbs (222 kN)1" (25.4 mm)
1-1/8" (28.6 mm)		18" (470 mm)
18" (470 mm)		510 lbs (231 kg)
815 lbs (370 kg)
65K lbs (289 kN)1-1/4" (31.8 mm)25" (645 mm)950 lbs (431 kg)
75K lbs (334 kN)1-1/4" (31.8 mm)
1-3/8" (34.9 mm)		25" (654 mm)
25" (654 mm)		1,250 lbs (567 kg)
1,380 lbs (626 kg)
100K lbs (445 kN)1-1/4" (31.8 mm)
1-3/8" (34.9 mm)
1-1/2" (38.1 mm)		29" (749 mm)
29" (749 mm)
29" (749 mm)		1700 lbs (771 kg)
1800 lbs (816 kg)
1875 lbs (850 kg)

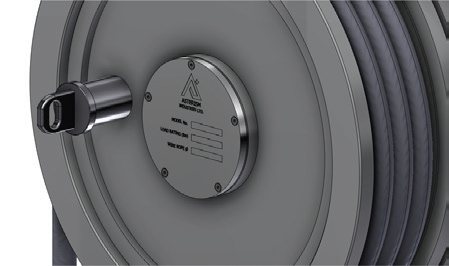

RA100 Rotary Deadline Anchor

Rotary Deadline Anchors
 Our rotary deadline anchors are designed for simple operation and maintenance while ensuring the safety of your rig and personnel. All of our deadline anchors meet or exceed the API 8C standard and are fabricated to product specification level 1 or 2 at a licensed American Petroleum Institute fabrication facility. Drum and plate materials are all high-grade alloys. Shaft materials are precision machined, heat-treated and pivot on the highest quality antifriction tapered roller bearings. There are 4 capactities available, shown in the following table.:

Cap.Wire line SizeNominal drum dia.Weight (approx)
50K lbs (222 kN)1" (25.4 mm)
1-1/8" (28.6 mm)		18" (470 mm)
18" (470 mm)		510 lbs (231 kg)
815 lbs (370 kg)
65K lbs (289 kN)1-1/4" (31.8 mm)25" (645 mm)950 lbs (431 kg)
75K lbs (334 kN)1-1/4" (31.8 mm)
1-3/8" (34.9 mm)		25" (654 mm)
25" (654 mm)		1,250 lbs (567 kg)
1,380 lbs (626 kg)
100K lbs (445 kN)1-1/4" (31.8 mm)
1-3/8" (34.9 mm)
1-1/2" (38.1 mm)		29" (749 mm)
29" (749 mm)
29" (749 mm)		1700 lbs (771 kg)
1800 lbs (816 kg)
1875 lbs (850 kg)
